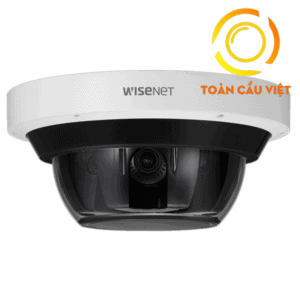

Camera IP Speed Dome Multi-directional hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET PNM-9084RQZ
Liên hệ
– Cảm biến hình ảnh: 1/2.8 inch 2MP CMOS.
– Chuẩn nén hình ảnh: H.265/H.264, MJPEG.
– Độ phân giải: 2.0 Megapixel.
– Ống kính: 3.2~10mm (3.1x) motorized varifocal.
– Tầm quan sát hồng ngoại: 30 mét.
– Chức năng quan sát Ngày và Đêm (ICR).
– Chức năng chống ngược sáng WDR 120dB.
– Chức năng giảm nhiễu số SSNRV.
– Hỗ trợ 4 khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lưu trữ 512GB (mỗi kênh).
Camera IP Speed Dome Multi-directional hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET PNM-9084RQZ
– Cảm biến hình ảnh: 1/2.8 inch 2MP CMOS.
– Chuẩn nén hình ảnh: H.265/H.264, MJPEG.
– Độ phân giải: 2.0 Megapixel.
– Ống kính: 3.2~10mm (3.1x) motorized varifocal.
– Tầm quan sát hồng ngoại: 30 mét.
– Chức năng quan sát Ngày và Đêm (ICR).
– Chức năng chống ngược sáng WDR 120dB.
– Chức năng giảm nhiễu số SSNRV.
– Hỗ trợ 4 khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lưu trữ 512GB (mỗi kênh).
– Hỗ trợ hệ điều hành: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12.
– Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Nguồn điện ngõ vào: HPoE, 12VDC.
– Kích thước: ∮315×145.9mm.
– Trọng lượng: 5.2kg.
Features
– 2MP x 4ch multi-directional camera
– Motorized PTRZ support.
– Max. 60fps@2MP (H.265, H.264).
– 3.2~10mm (3.1x) motorized varifocal lens.
– IR viewable length: 30m.
– H.265, H.264, MJPEG codec, Multi streaming.
– Video analytics, WiseStreamII.
– IP66, IK10, NEMA4X.
Đặc tính kỹ thuật
| Mdoel | PNM-9084RQZ |
| Video | |
| Imaging Device | 1/2.8 inch 2MP CMOS: each CH |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps (60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05lux(F1.6,30 IRE) BW: 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.9(Tele) |
| Angular Field of View | H: 109.0°(Wide)~33.2°(Tele), V: 57.4°(Wide)~18.7°(Tele), D: 132.0°(Wide)~38.0°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200cycles) Pan: 0~360˚, Tilt: 30~80˚, Rotate: 0~90˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey, Green, Red, Blue, Black, White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 30m |
| Network | |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(10 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.13 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 4slot 512GB(Each CH) |
| Memory | 5GB RAM, 1280MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / Less than 90% RH Start up should be above at -35˚C |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | HPoE, 12VDC |
| Power Consumption | Max. 42W, Typical: 28W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Dimensions | ∮315×145.9mm |
| Weight | 5.2kg |
